HYSTOU  Mini PC H3-J4125/J4105 models are designed for unique, office, home and training applications. The minicomputer's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.

H3-J4125/J4105 Main Features:
[Memory & Storage]  Memory types: 260 Pin DDR4L SO-DIMM Socket. Storage:1 x SATA3.0 for 2.5 inch HDD/SSD,1xmSATA slot.

[Faster Running Speed] Equipped with Intel® Celeron® Processor J4125/J4105 Quad Core, pre-installed Windows 10 Pro（64-bit）. Powerful hardware makes it run more stable.

[Excellent Waterproof and Dustproof Effect]  Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.
[Dual Screen Display] Built with 1xHDMI port and 1xVGA port, seamlessly connecting two monitors. With integrated Intel UHD Graphics 600 to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family. Support 2.4G/5.8G Band WiFi.

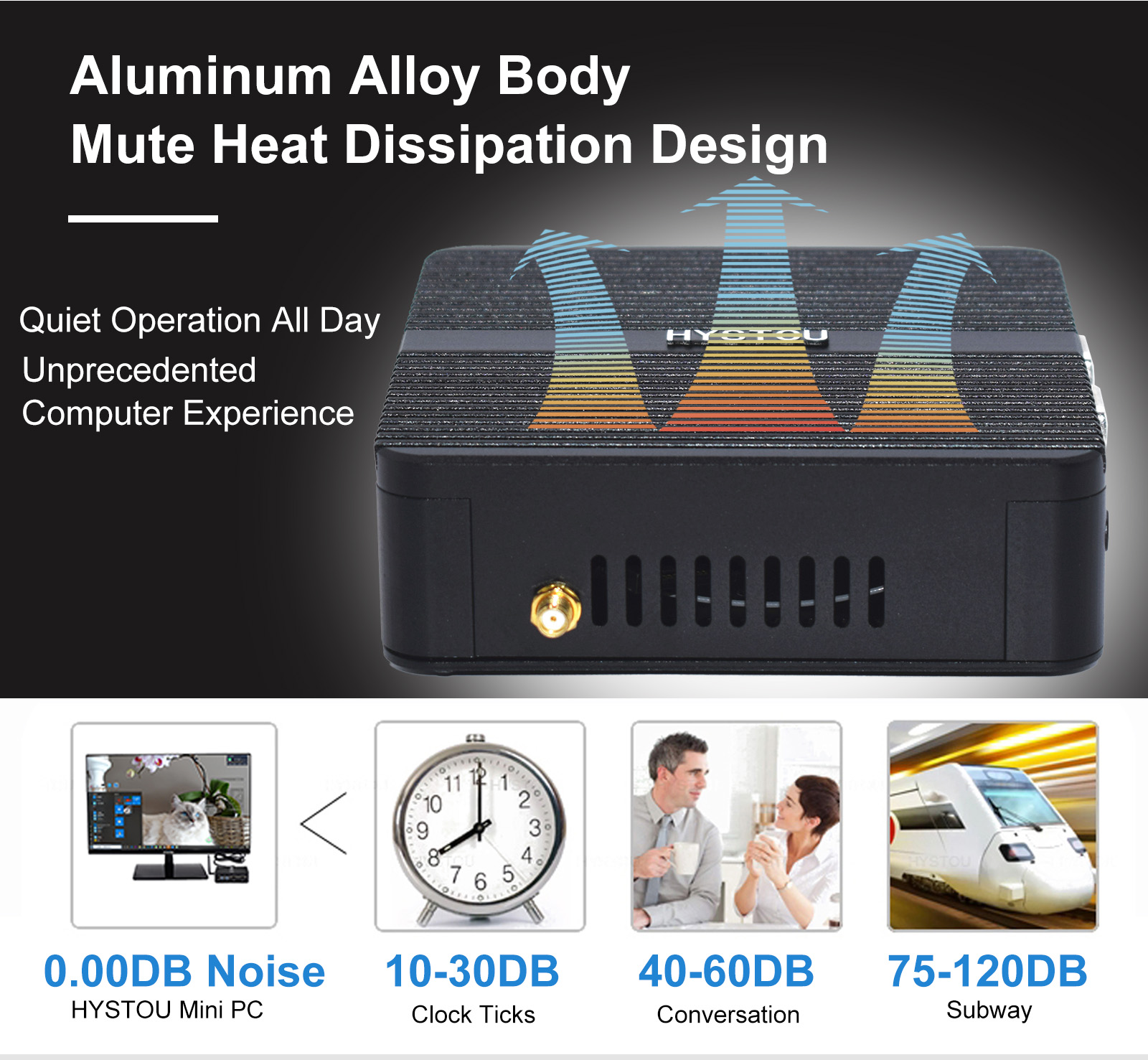

[No noise & portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can save a lot of space.

Processor
CPU	Intel Celeron J4125 (4M Cache, 4 Cores 4 Threads, Base Frequency 2.00 GHz Burst Frequency 2.70 GHz)   Intel Celeron J4105 (4M Cache, 4 Cores 4 Threads, Base Frequency 1.50 GHz Burst Frequency 2.50 GHz)
TDP	10W
CPU Lithography	14 nm
Memory Specifications
Max Memory Size	32GB
Memory Types	260 Pin DDR4L SO-DIMM Socket
Memory Channels	Single Channel
ECC Memory	Don’t support
Storage Specification
m.2 SSD	1 x M.2 NVME SSD
SATA	1 x SATA3.0 for 2.5 inch HDD/SSD
mSATA	1 x mSATA slot
Graphics
Processor Graphics	Intel® UHD Graphics 600
HDMI	1 x HDMI
VGA	1 x VGA
Power Specification
Power Adapter	12V Power Input, supply 12V 3A power adapter within the package
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	2 x USB 3.0 port, 2 x USB 2.0 port
Audio	3.5mm 1 Jack, MIC in/ Line out
Video	1 x HDMI, 1 x VGA Dual Display
Power Input	5.5mm 12V In
Lan Port	2 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller

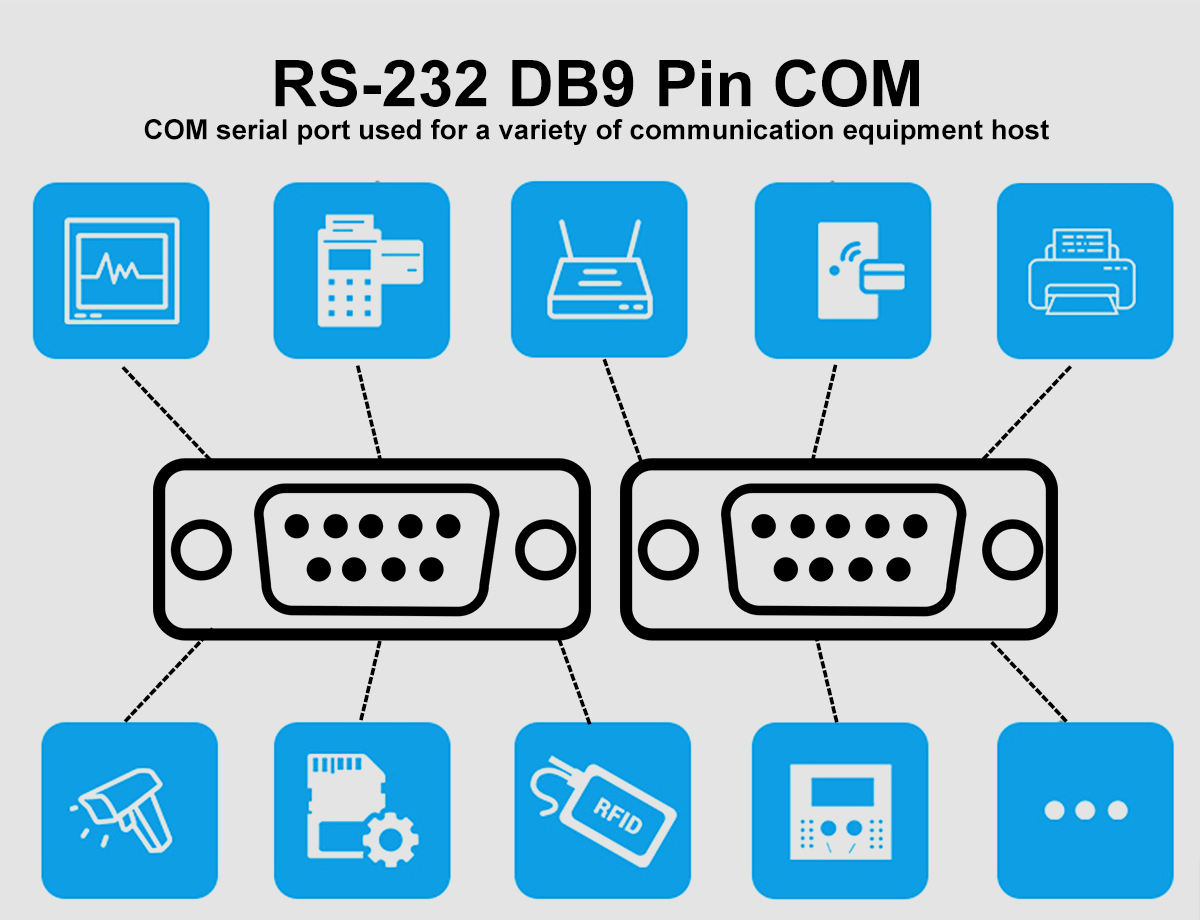

Com Port	2 x RS232 Com port
Others
System	Windows 10 Pro
Case Material	Aluminium Alloy
Dimension	Mini PC size 135x127x35mm Package size 305x205x75mm
Weight	Net 0.75kg, Gross 1.55kg

Industrial comp1111uters are industrial control computers specially designed for industrial use. Their basic performance and compatibility are similar to those of commercial computers, but industrial computers pay more attention to stability in different environments. Hystou industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.111

Processor parameter for referance only:

1. Intel Core i5-7267U 2 cores 4 threads 3.1GHz up to 3.5GHz 4MB cache TDP 28W Intel Iris Plus Graphics 650.1

2. Intel Core i5-8250U 4 cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphics 620.1

3. Intel Core i7-8550U 4 cores 8 threads 1.8GHz up to 4.0GHz 8MB cache TDP 15W Intel UHD Graphics 620.1

4. Intel Core i5-10210U 4 cores 8 threads 1.6GHz up to 4.2GHz 6MB cache TDP 15W Intel UHD Graphics.1

5. Intel Core i7-10510U 4 cores 8 threads 1.8GHz up to 4.9GHz 8MB cache TDP 15W Intel UHD Graphics.1

- Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.

- Brushed Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.

- 2xIntel i201/i211 Gigabit RJ45 LANs, 6xDB9 COM(4xRS232/422/485), 8xUSB(2xUSB inside), PS/2, GPIO and LPT rich ports for different equipments.

-3xStorage: 1*MSATA SSD+1*M.2 NVME SSD+1*2.5''SATA installation together;

- Fit for 9-36V 3pin phoenix terminal power input, ATX/AT quick switch.

- Support VGA + HDMI dual display output synchronously.11

- One embedded SIM card slot onboard for 3G/4G Wi-Fi.

- Support Watchdog, AWAL, RTC, WOL(ATX mode), PXE, Reset functions.

- Low consumption TDP only 10W and can be mounted on the wall.11

1111

Processor
CPU	Intel Core i5-7267U (4M Cache, 2 Cores 4 Threads, Base Frequency 3.10 GHz Turbo Frequency 3.50 GHz) Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz) Intel Core i7-8550U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.00 GHz) Intel Core i5-10210U (6M Cache,4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 4.20 GHz) Intel Core i7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz)
TDP	15W~28W
CPU Lithography	22 nm
Memory Specifications
Max Memory Size	64GB
Memory Types	2 x SO-DIMM DDR4 Slot
Memory Channels	Single Channel
ECC Memory	Don’t support
Storage Specification
m.2 SSD	1 x M.2 SATA/NVME 2280 SSD
SATA	1 x SATA3.0 for 2.5 inch HDD/SSD
mSATA	1 x mSATA slot
Graphics
Processor Graphics	Intel lris Plus Graphics 650 for 7th CPU,Intel UHD Graphics 620 for 8th CPU,Intel UHD Graphics for 10th CPU
HDMI	1 x HDMI
VGA	1 x VGA
Power Specification
Power Adapter	12V Power Input,supply 12V 5A power adapter within the package for 7th CPU. 19V Power Input,supply 19V 4.74A power adapter within the package for 8th,10th CPU
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	4 x USB 3.0 port, 2 x USB 2.0 port
Audio	3.5mm 1 Jack, MIC in/ Line out
Video	HDMI+VGA Dual Display
Power Input	12V,19V In
Lan Port	2 x Intel-I210/I211 Gigabit RJ45 Lan
Com Port	2 x RS232 Com port, 4 x RS485 Com port
Others
System	Support Windows 8/10, Linux
Case Material	Aluminium Alloy
Dimension	Mini PC size 249x150x86mm Package size 315x285x135mm
Weight	Gross weight 3.5kg
